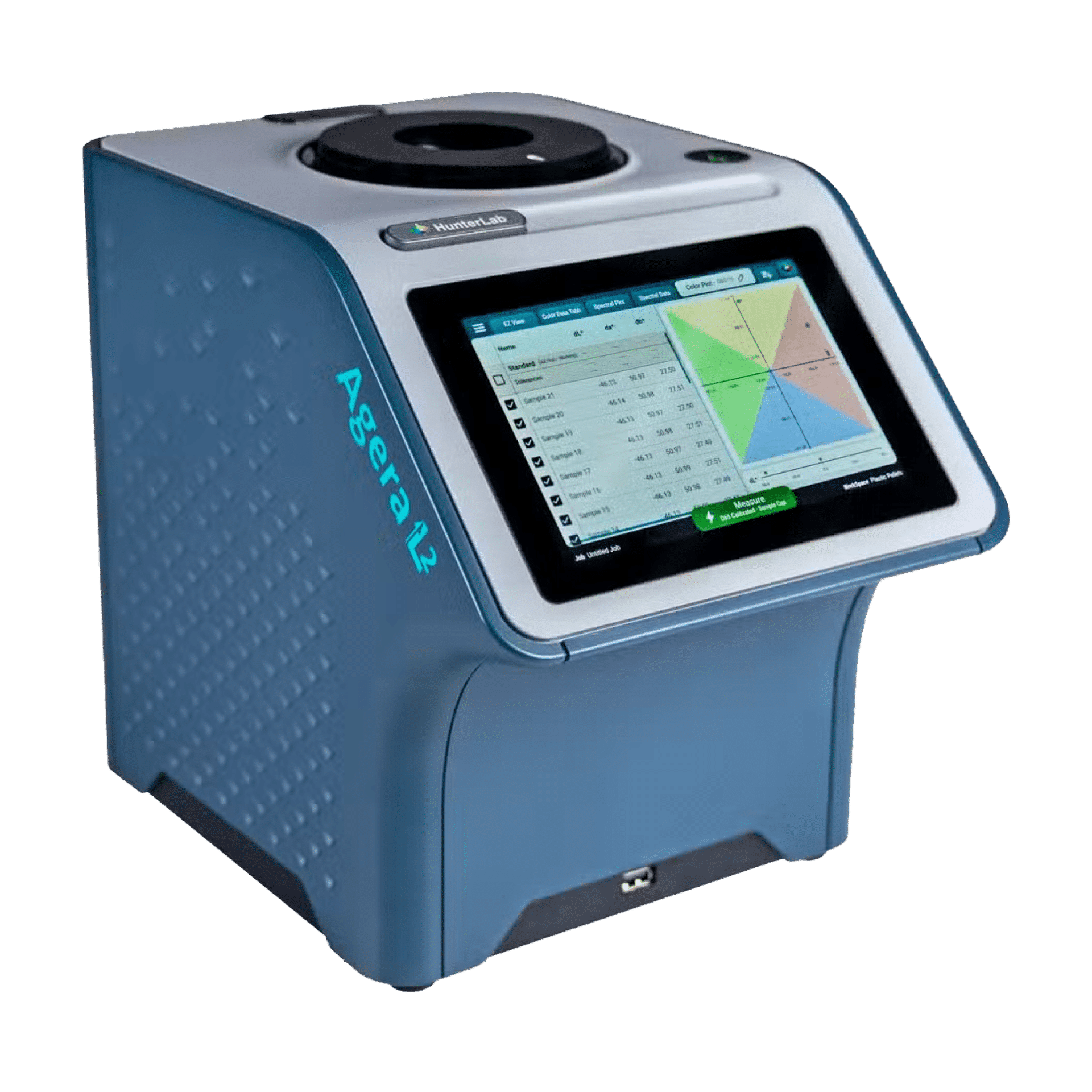

The new Agera L2 spectrophotometer.
The new Agera L2 builds on the proven Agera color measurement system and expands it with new features for colour measurement of plastics, textiles, pharmaceutical products, chemical products, and paper—with enhanced performance for color-critical, complex, extremely dark (UltraDark), and fluorescent samples.
-
Technical data
Agera L2 Features at a Glance
The perfect solution for laboratory & production
-
0°/45° geometry
This geometry according to DIN corresponds to the color impression that the human eye has of the sample.
-
Ultra dark mode
High-precision measurement values for deep black or low-light materials such as carbon black, black pigments and powders.
-
Grade A CIE D65 illumination
CIE D65 class A light source for consistent measurement results, across all locations.
-
Full spectrum + UV
With an illumination range of 360-700 nm, the Agera is also suitable for measuring optically brightened samples. -
Smart user interface
Your measurement results can be easily transferred to existing LIMS or SPC systems.
-
Easy to use and precise

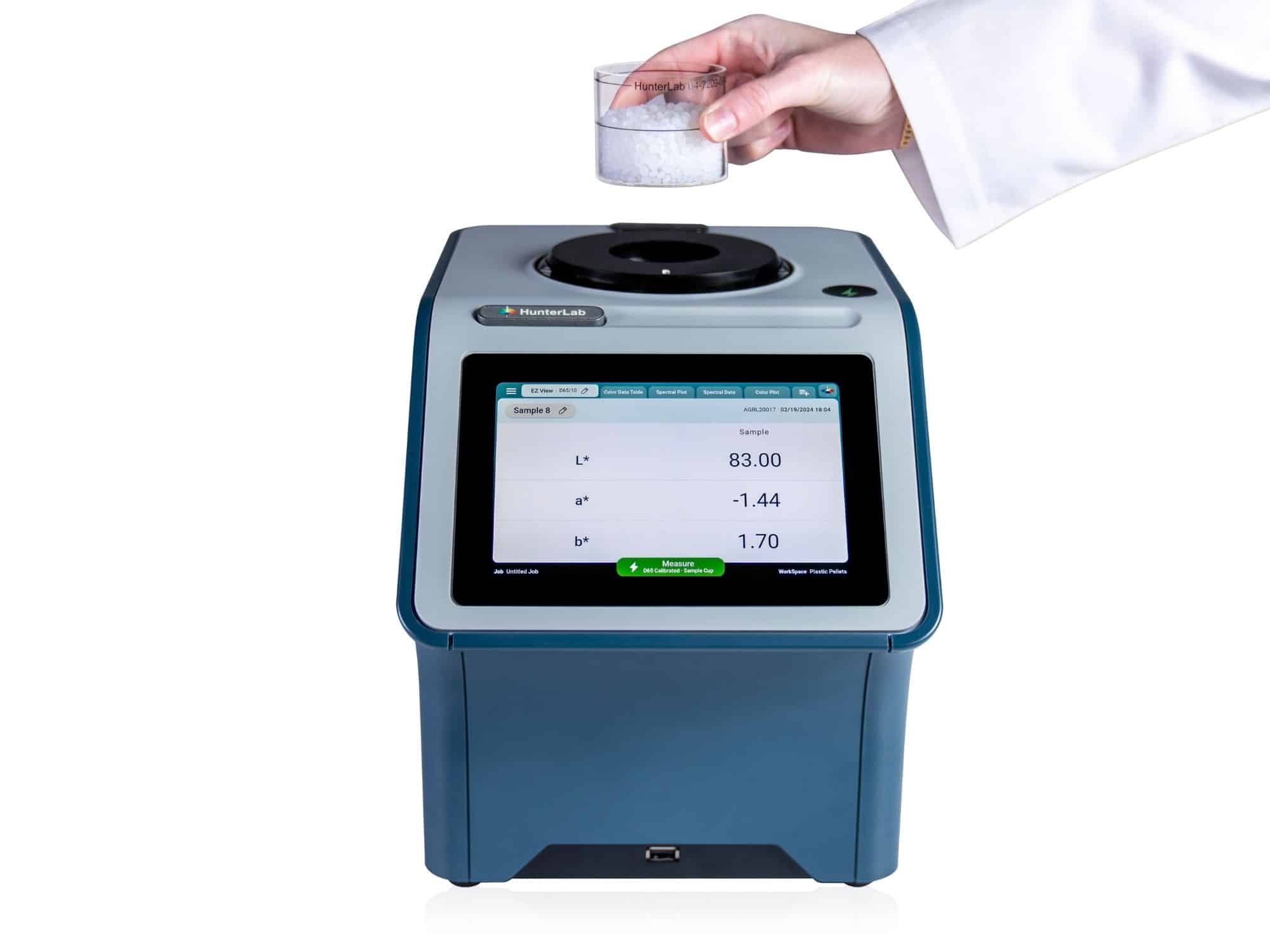

Simple "one touch" measurement reduces training time, optimizes the workflow and increases your productivity.
Professional for laboratory & production

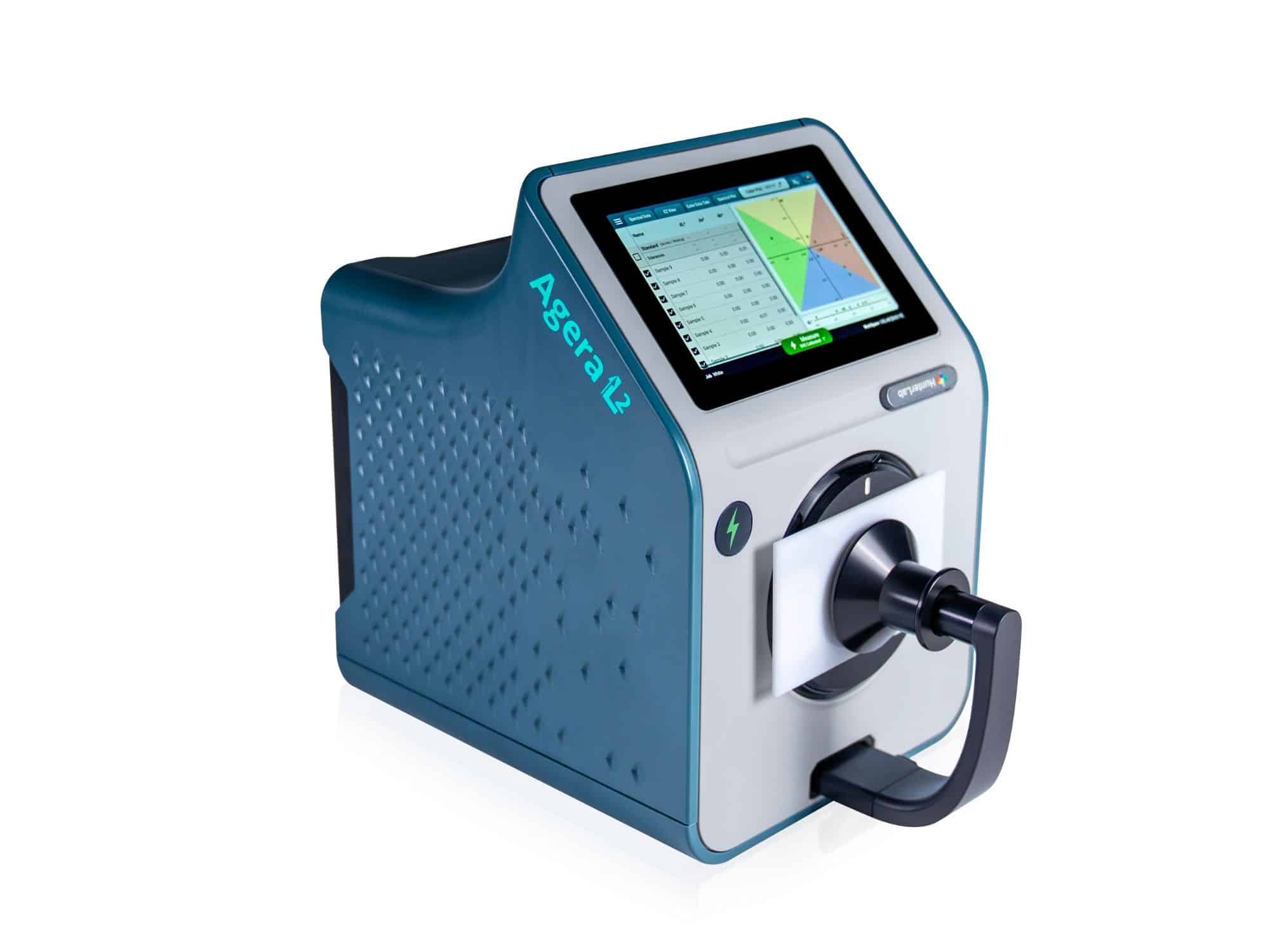

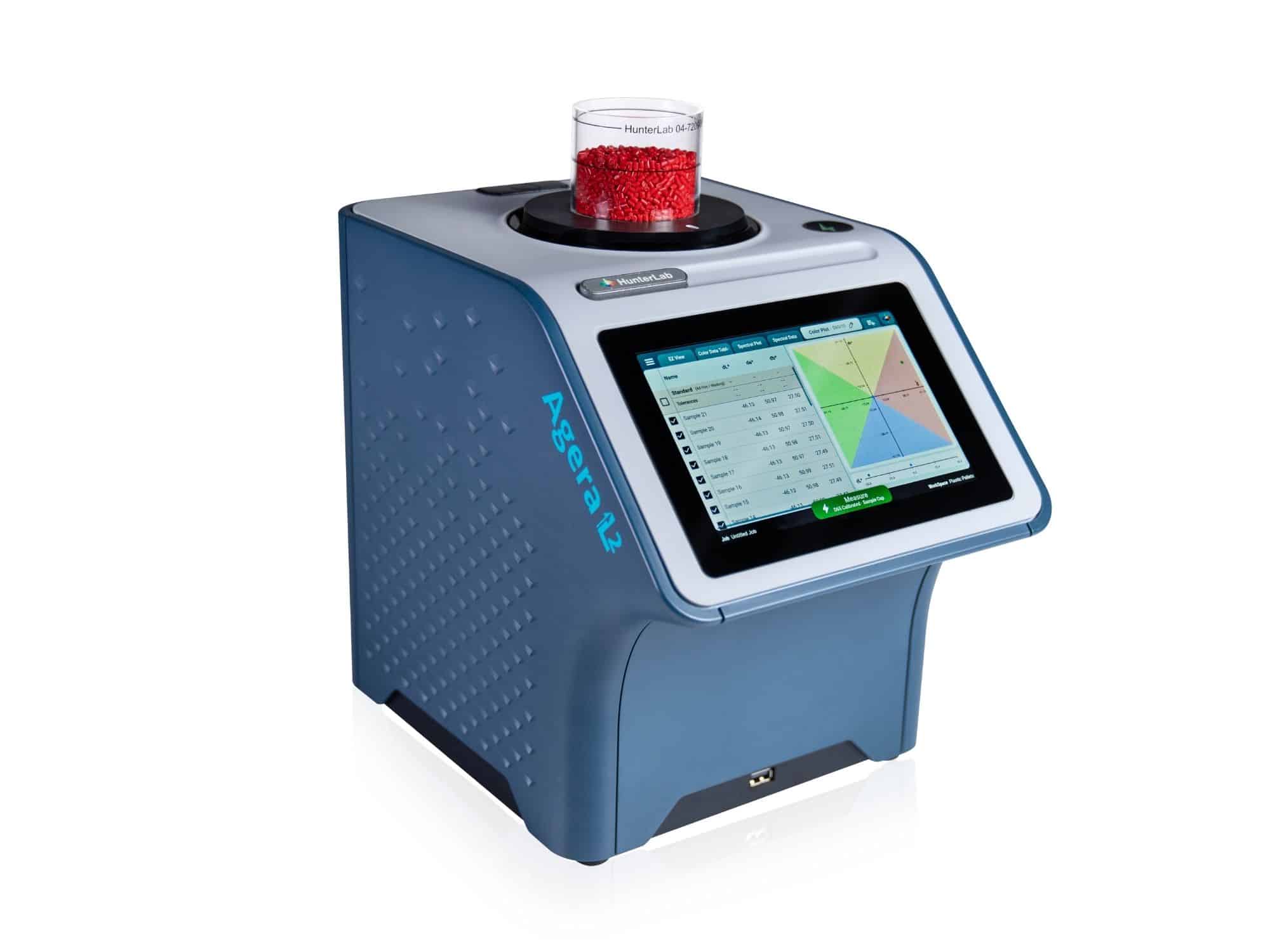

Depending on the sample and application, the device can be positioned with the measurement aperture facing upward or forward. Measuring apertures of various sizes adapt to any requirement and sample. Whether powders, granules, liquid or semi-solid samples, solid materials, or structured and inhomogeneous surfaces, the new Agera L2 is the right choice for many applications.
HunterLab provides excellent customer support long after the sale. Whether on-site or remotely, our experienced application engineers offer straightforward, fast, and expert assistance. Would you like to see a live demo first, or do you have questions about a specific application? Feel free to contact our colorimetry experts.
colour. gloss. Ultra-Dark. UV.

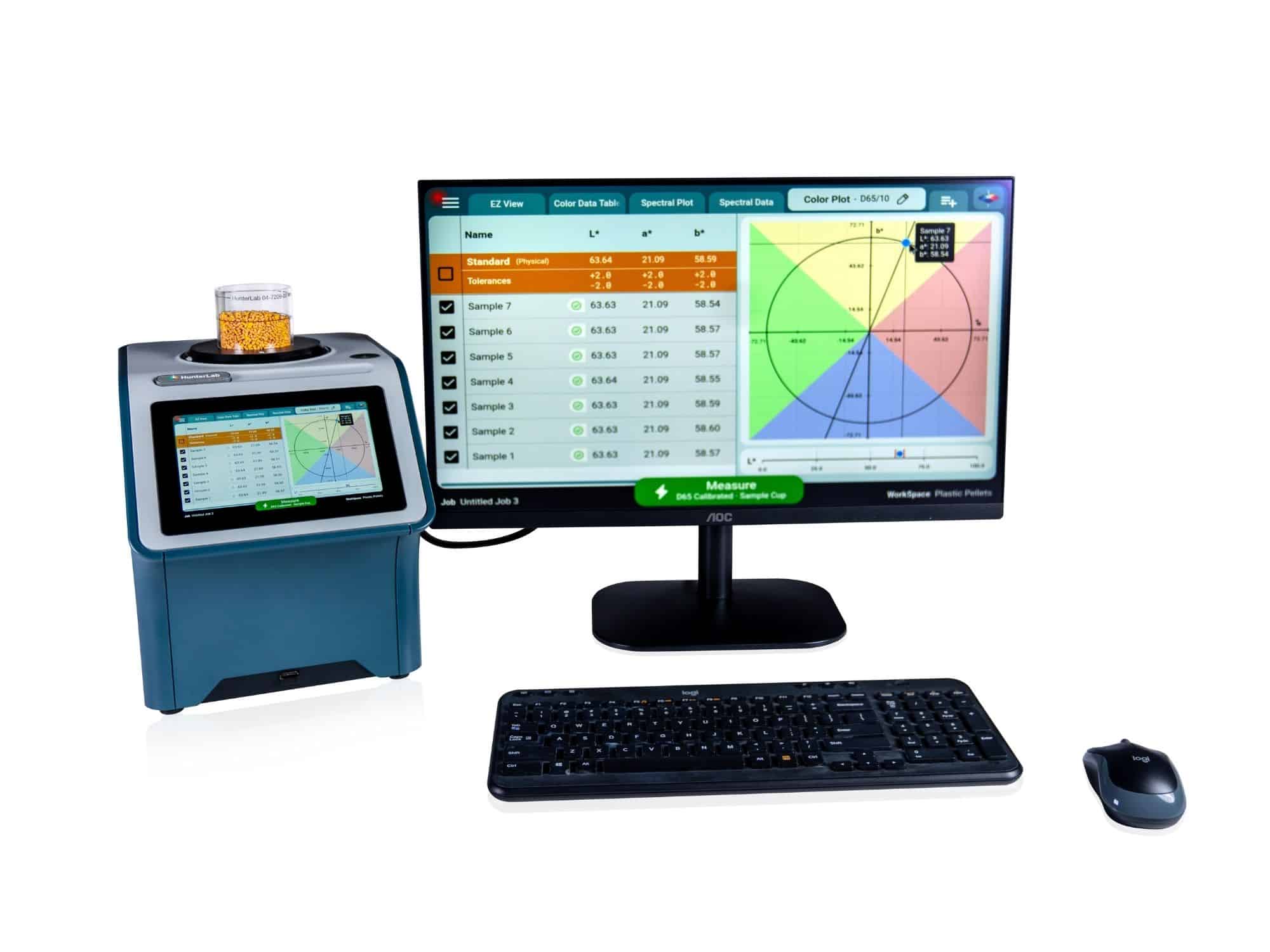

With simultaneous measurement of reflectance of colour, 60-degree gloss measurement, a UV option, and image capture, the Agera L2 offers unique functionality combined with ease of use. This stand-alone device, with its small footprint and touchscreen, is easy to operate and provides reliability thanks to long-lasting LED technology. The Agera L2 features new and improved color software: Essentials 2.0 delivers lab-quality data in a clear, touch-optimized user interface —for fast, confident decisions. The Agera L2 features precise illumination in accordance with the CIE standard (certified Grade A CIE D65 illumination), an UltraDark mode for deep-black samples, and a rugged, splash-proof design.
Compliant with standards. Versatile. Robust.
The Agera L2 spectrophotometer complies with internationally recognized ASTM, CIE, DIN, and ISO standards for colour measurement in terms of both design and function. Test functions and reference standards (white tile, black glass and green tile) for calibration and test equipment monitoring are included as standard. The Agera L2 is a durable laboratory instrument that offers precise performance in a compact footprint. Solid construction and high-quality components guarantee a long service life even under heavy use.
Technical Specifications of the Agera L2
The perfect solution for laboratory & production
Measuring method
Technical
Performance
Indices & measurement data
Software Features
Interfaces
Key data
Measurement principle: Noncontact dual-beam spectrophotometer
Geometry: 0° illumination, 45° all-around visibility (ASTM E1164)
Orientation: Measuring opening either upwards or to the front
Measuring time: < 3 seconds
Gloss: 60°
Camera/image capture: High resolution, D65 lighting, 45°/0° image capture and storage
Measuring apertures:
XLAV illuminated / measured: 53.97 mm (2.125 in) / 50.80 mm (2 in)
LAV illuminated / measured: 28.57 mm (1.125 in) / 25.40 mm (1 in)
MAV illuminated / measured: 17.47 mm (0.688 in) / 15.89 mm (0.625 in)
Gloss: ∅ 8 mm (5/16 in)
Illumination range: 360 nm to 700 nm
Spectral range: 400 nm – 700 nm
Gloss content: Excluded
Wavelength resolution: < 3 nm
Effective bandwidth: 10 nm equivalent triangular
Reporting interval: 10 nm
Photometric bandwidth: 0 to 150 %
Automatic UV control: Can be switched on – manufacturer or user calibration, automated comparative data output
Light source: LED combination module, full spectrum
Lamp life: 5 years
Spectrometer: Polychromator with 256-element diode array; concave, holographic grating
Conformity with standards:
- Colour: CIE 15:2018, ASTM E1164, DIN 5033, Part 7, and JIS Z 8722 Condition C;
- 60° Gloss: ASTM D523, ASTM D2457, ISO 2813, ISO 7668, JIS Z 874
Device Matching: Colour: ΔE 2000 < 0.20 CIE L*a*b* (Avg) to CCS II Tile Set Gloss: 0–100 <= 0.5 GU
Colorimetric repeatability: Colour: ΔE* < 0.03 CIE L*a*b* (Max) on white tile; Gloss: 0–100 GU; GU: ≤0.1 GU

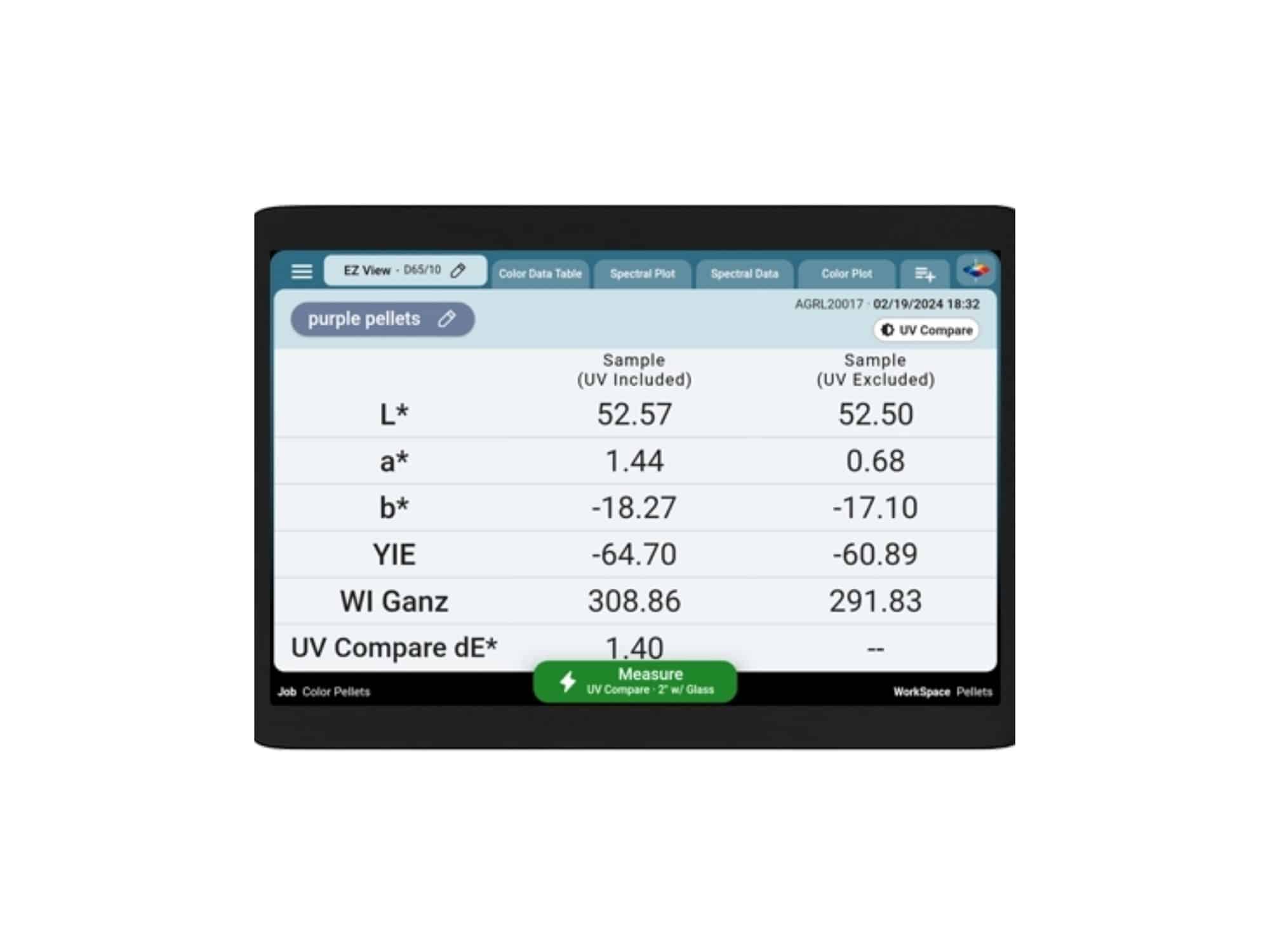

- E313 Whiteness
- Ganz Whiteness Index
- E313 Tint
- Ganz Tint
- E313 Yellowness
- D1925 Yellowness Index
- Y Brightness
- Z %
- 457 nm Brightness
- Baking Contrast Units
- ASTM E1349
- ISO 18314-3 Blackness (My, Mc, dM) and Greyness (Gy, Gc, dG)
Data views: Spectral Data, Spectral Plot, Trend Plot, EZ View, Color Plot, Color Data Plot
Other features: pass/fail color alarm, time/date stamp, auto-naming/saving, data backup/restore
Color scales: CIE L*a*b*, Hunter Lab, CIE L*C*h, CIE Yxy, CIE XYZ
Color difference scales: ΔL*a*b*, ΔLab, ΔL*C*h, ΔYxy, ΔXYZ
Color Difference Indices: ΔE*, ΔE, ΔE CMC, and ΔE 2000, dC*, dH*, Strength at Maximum Absorbance, Strength-Weighted, Metamerism, Grayscale Color, Grayscale Stain, Shade Number 555
Memory: 8 GB (> 1 million measurements with images)
Standard light types: A, C, D50, D55, D65, D75, F02, F07, F11
Observer functions: 2° and 10°
Languages: available in almost all languages
USB OTG: Connection to printer, keyboard and mouse
Front panel USB: 2.0 bidirectional, data import/export via hard disk
Ethernet RJ45: save, stream (LIMS/SPC systems), print or send data directly by e-mail
Remote Access Support: Integrated support tool (internet-based)
Dimensions:
- Height: 28 cm (11 in)
- Width: 22 cm (8.75 in)
- Depth: 31 cm (12.25 in)
- Weight: 7.7 kg (17 lb)
Display: 7″ high-resolution touchscreen (resolution 1280×800)
Power supply: 100 to 240 VAC, 47 to 63 Hz, 24 VDC (3.75A 90W)
Working conditions: 10° to 40°C (50° to 104° F), 10 % – 90 % relative humidity. Air humidity
Storage conditions: -20° to 65°C (-5 to 150º F), 10 % – 90 % relative humidity. Air humidity
Scope of delivery:
- Agera L2 Sensor
- Measuring apertures: XL: 53.97 mm (2.125 in), L: 28.57 mm (1.125 in), M: 17.47 mm (0.688 in)
- Standard box with a calibrated white tile, black glass (colour and gloss), and a green test tile
- Traceability certificate
- Mains cable (100-240 V)
- Agera L2 Quick Start Guide
- Agera L2 User Guide
